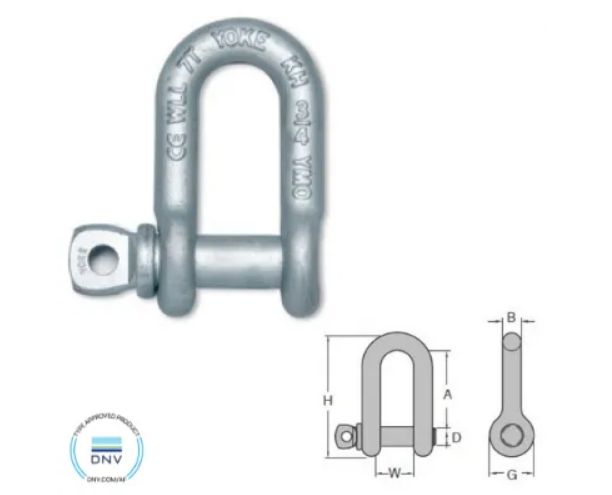

D Shackle with Bolt Pin

‎د.ب.‏0.000
In stock
Product Details
  • Shackles are Type Approved by DNV & ABS.
  • Shackles are forged alloy steel with alloy pin.
  • Size and the Working Load Limit permanently shown on each shackle.
  • All shackles with Batch Code which links to Test Certificate and quality traceability.
  • 100% magnaflux crack detection during manufacturing.
  • 20,000 cycle fatigue rated to 1.5 times Working Load Limit.
  • Galvanized finish
  • Product Specification

    Item Code Size (mm) Size (inch) WLL (ton) A (mm) B (mm) D (mm) G (mm) H (mm) W (mm) Weight (kg)
    8-804-10 10 3/8 2 36 10 11 23 63 16 0.1
    8-804-11 11 7/16 2.7 43 11 13 27 74 19 0.2
    8-804-13 13 1/2 3.3 47 13 16 30 83 20 0.3
    8-804-16 16 5/8 5 60 16 19 38 106 27 0.6
    8-804-19 19 3/4 7 71 19 22 46 126 33 0.9
    8-804-22 22 7/8 9.5 87 22 26 53 148 38 1.4
    8-804-26 26 1 12.5 95 26 28 60 166 44 2.2
    8-804-28 28 1-1/8 15 108 28 32 68 190 46 3.0
    8-804-32 32 1-1/4 18 119 32 36 76 210 52 4.2
    8-804-36 36 1-3/8 21 133 36 38 84 232 57 5.7
