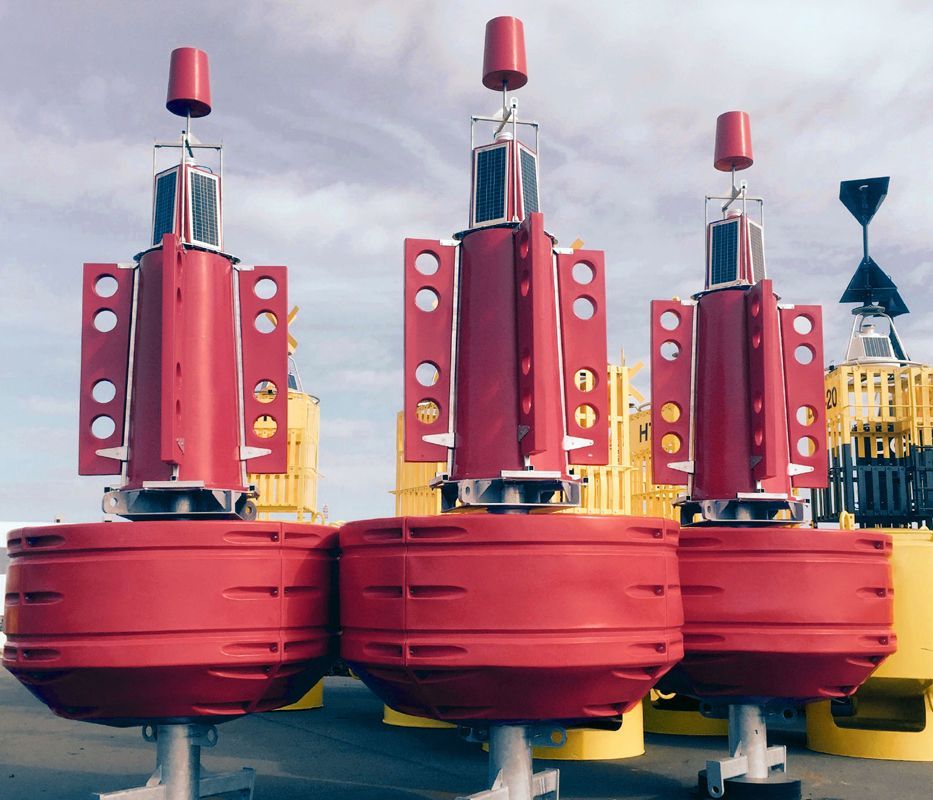

2600mm Diameter Ocean Buoy

The float section of the Trident-2600 is made up of four rotationally moulded quadrants, which fasten together to form an incredibly robust 2.6 metre wide float section and a lantern focal height of up to 5m. The enhanced poly-tower design provides a huge visual area for navaid recognition, and consists of a sealed, rotationally moulded tower section which incorporates an internal radar reflector and solar mount facility.

The unique design of the mooring post and flat base means the buoy can be stored upright in service yards and transported via truck and service vessels for increased handling safety.

• 2.6mtr diameter & up to 5mtr focal height
• Robust construction of 4 quadrant hull sections
• Convenient forklift access points to safely maneuver the buoy assembly
• Stands flat on service vessel deck
• High visibility red, green, white or yellow as per IALA recommendations
• Excellent buoyancy & stability
• Easy to deploy & service
• Lightweight
• No painting, ever
• Cost effective & environmentally friendly
• Mould-in graphics
• Day marks
• Monitoring Systems: AIS, GSM, SATCOM
• Name Plate
• Aluminium tower assembly
• Galvanised or Stainless Steel mooring post
• Tail tube mooring post
• Lantern options – SL-C310 Series, SL-C510 Series, SL-125 Series, SL-155 Series, SL-C500 or SL-C600
