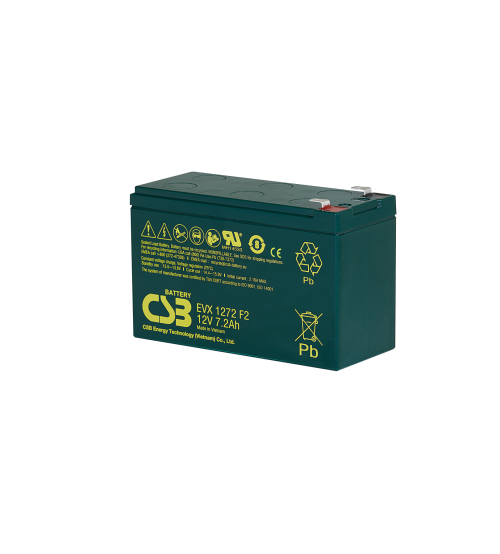

CSB Battery 12 V 7.2 AH - Model : GP1272F2
د.ب.0.000
In stock
Product Details
GP 1272 : 12 V 7.2 Ah
GP 1272 is a general purpose battery up to 5 years in standby service.
As with all CSB batteries, all are rechargeable, highly efficient, leak proof and maintenance free.
Specification
| Cells Per Unit |
6 |
| Voltage Per Unit |
12 V |
| Capacity |
7.2 Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F) |
| Weight |
Approx. 2.40kg. (5.29 lbs.) |
| Maximum Discharge current |
100A/130A (5sec.) |
| Internal Resistance |
Approx. 23mΩ |
| Operating Temperature Range |
Discharge：-15℃~50℃(5°F~122°F) |
| Charge：-15℃~40℃(5°F~104°F) |
|
| Storage：-15℃~40℃(5°F~104°F) |
|
| Nominal Operating Temperature Range |
25°C ± 3°C (77°F ± 5°F) |
| Float charging voltage |
13.5 to 13.8 VDC/unit Average at 25°C (77°F) |
| Recommended Maximum Charging current limit |
2.16A |
| Equalization and Cycle Service |
14.4 to 15.0 VDC/unit Average at 25°C (77°F) |
| Self Discharge |
It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃ |
| Terminal |
F1/F2-Faston Tab187/250 |
| Container Material |
ABS(UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request. |
