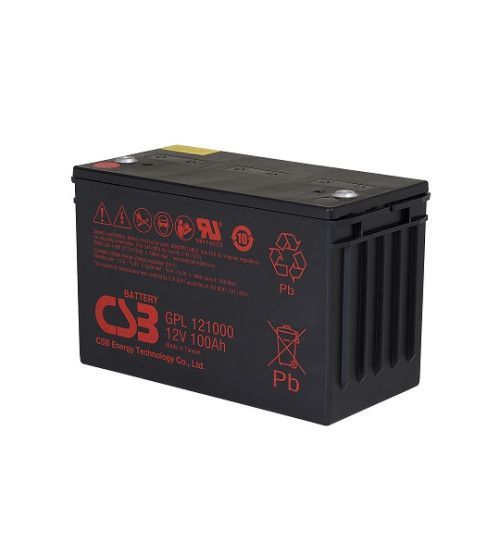

CSB Battery 12V 100AH LF - Model: GPL121000
د.ب.0.000
In stock
Product Details
GPL 121000 : 12V 100Ah
GPL 121000 is a general purpose battery up to 10 years expected life under normal float charge.
As with all CSB batteries, all are rechargeable, highly efficient, leak proof and maintenance free.
Specification
| Cells Per Unit |
6 |
| Voltage Per Unit |
12 V |
| Capacity |
100Ah @ 20hr-rate to 1.75 volts per cell @ 25°C (77°F) |
| Weight |
Approx. 33.5kg. (73.83 lbs.) |
| Maximum Discharge current |
800A (5 sec.) |
| Internal Resistance |
Approx. 3.2mΩ |
| Operating Temperature Range |
Discharge：-15℃~50℃(5°F~122°F) |
| Charge：-15℃~40℃(5°F~104°F) |
|
| Storage：-15℃~40℃(5°F~104°F) |
|
| Nominal Operating Temperature Range |
25°C ± 3°C (77°F ± 3°F) |
| Float charging voltage |
13.5 to 13.8 VDC/unit Average at 25°C (77°F) |
| Recommended Maximum Charging current limit |
30A |
| Equalization and Cycle Service |
14.4 to 15.0 VDC/unit Average at 25°C (77°F) |
| Self Discharge |
It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃ |
| Terminal |
I2-Thread lead alloy recessed terminal to accept M6 bolt |
| Container Material |
Polypropylene(UL 94-HB) & Flammability resistance of (UL 94-V0) can be available upon request |
