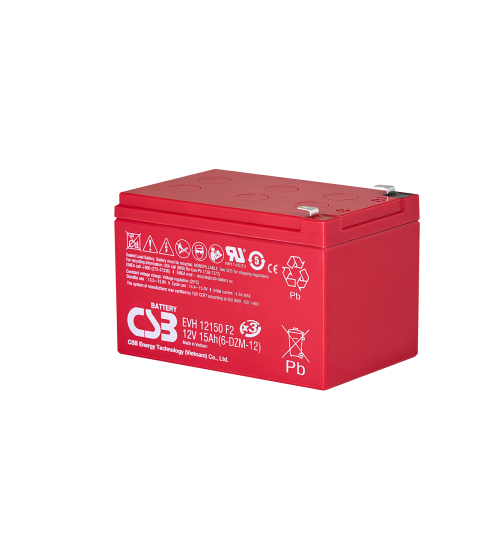

CSB Battery 12V 15AH - Electric Vehicles - Model : EVH12150F2
get offer 0.00
In stock
Product Details
EVH12150F2 : 12V 15Ah
EVH 12150 (3nd generation) is designed specially with increase cycle performance and reliability from previous generations in electric vehicles application. It has high cycling life, high efficiency and long service life
Specification
| Cells Per Unit |
6 |
| Voltage Per Unit |
12 V |
| Capacity |
15.0Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F) |
| Weight |
Approx. 4.60kg. (10.14 lbs.) |
| Maximum Discharge Current |
180A (5 sec) |
| Internal Resistance |
Approx. 10.5 mΩ |
| Operating Temperature Range |
Discharge：-15℃~50℃(5°F~122°F) |
| Charge：-15℃~40℃(5°F~104°F) |
|
| Storage：-15℃~40℃(5°F~104°F) |
|
| Nominal Operating Temperature Range |
25°C ± 3°C (77°F ± 5°F) |
| Float Charging Voltage |
NOT RECOMMENDED |
| Recommended Maximum Charging current limit |
4.5 A |
| Equalization and Cycle Service |
14.4 to 15.0 VDC/unit Average at 25°C (77°F) |
| Self Discharge |
Less than 10% after 90 days, can be stored up to 6 months at 25℃ (77℉) |
| Terminal |
F2-Faston Tab 250 |
| Container Material : |
ABS(UL94-HB) |
