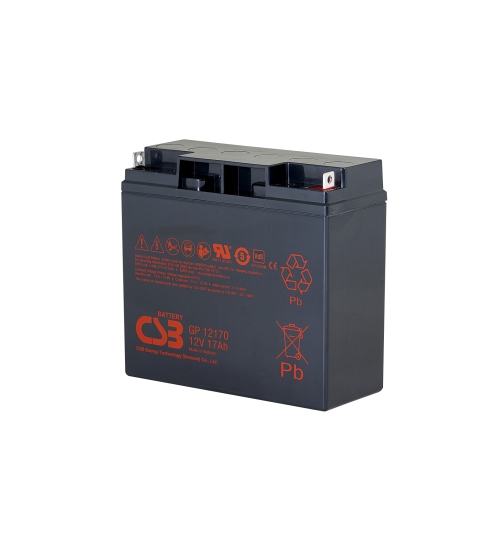

CSB Battery 12V 17AH - Model : GP12170B1
د.ب.0.000
In stock
Product Details
GP12170 : 12 V 17 Ah
GP 12170 is a general purpose battery up to 5 years in standby service.
As with all CSB batteries, all are rechargeable, highly efficient, leak proof and maintenance free.
Specification
| Cells Per Unit |
6 |
| Voltage Per Unit |
12 V |
| Capacity |
17 Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F) |
| Weight |
Approx. 5.5 kg. (12.12 lbs.) |
| Maximum Discharge current |
230 A (5sec.) |
| Internal Resistance |
Approx. 14.0 mΩ |
| Operating Temperature Range |
Discharge：-15℃~50℃(5°F~122°F) |
| Charge：-15℃~40℃(5°F~104°F) |
|
| Storage：-15℃~40℃(5°F~104°F) |
|
| Nominal Operating Temperature Range |
25°C ± 3°C (77°F ± 5°F) |
| Float charging voltage |
13.5 to 13.8 VDC/unit Average at 25°C (77°F) |
| Recommended Maximum Charging current limit |
5.1A |
| Equalization and Cycle Service |
14.4 to 15.0 VDC/unit Average at 25°C (77°F) |
| Self Discharge |
It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃ |
| Terminal |
B1/B3-L terminal to accept M5 nut & bolt |
| Container Material |
ABS(UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request. |
CSB Battery 12V 17AH - Model : GP12170B1
