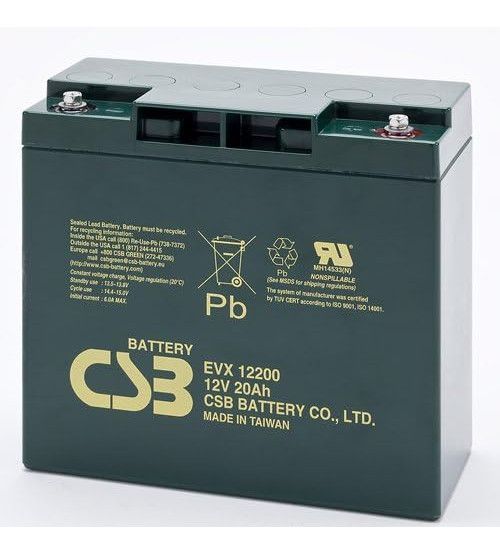

CSB Battery 12V 20AH - Model : EVX12200
د.ب.0.000
In stock
Product Details
EVX 12200 : 12V 20Ah
EVX 12200 is designed specially for electric vehicles, such as electric golf cart, electric wheelchair, mower, dust collector etc. It has high cycling life, high efficiency and long service life.
Specification
| Cells Per Unit |
6 |
| Voltage Per Unit |
12 V |
| Capacity |
20 Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F) |
| Weight |
Approx. 6.55kg. (14.44 lbs.) |
| Maximum Discharge Current |
230A (5 sec) |
| Internal Resistance |
Approx. 13.5 mΩ |
| Operating Temperature Range |
Discharge：-15℃~50℃(5°F~122°F) |
| Charge：-15℃~40℃(5°F~104°F) |
|
| Storage：-15℃~40℃(5°F~104°F) |
|
| Nominal Operating Temperature Range |
25°C ± 3°C (77°F ± 5°F) |
| Float Charging Voltage |
13.5 to 13.8 VDC/unit Average at 25°C (77°F) |
| Recommended Maximum Charging current limit |
6.0A |
| Equalization and Cycle Service |
14.4 to 15.0 VDC/unit Average at 25°C (77°F) |
| Self Discharge |
It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃ |
| Terminal |
I1-Thread lead alloy recessed terminal to accept M5 bolt |
| Container Material |
ABS(UL94-HB) |
