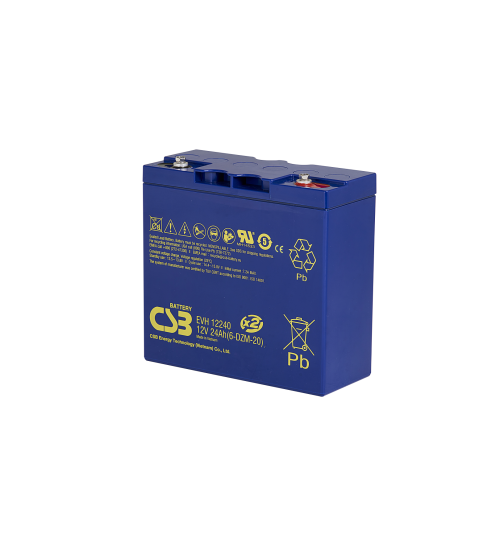

CSB Battery 12V 24AH - Electric Vehicles Model : EVH12240
د.ب.0.000
In stock
Product Details
EVH 12240: 12V 24Ah
EVH 12240 (2nd generation) is designed specially with increase cycle performance and reliability from previous generations in electric vehicles application. It has high cycling life, high efficiency and long service life.
Specification
| Cells Per Unit |
6 |
| Voltage Per Unit |
12 V |
| Capacity |
24.0 Ah@ 20hr-rate to 1.75V per cell @ 25°C (77°F) |
| Weight |
Approx. 7.55kg. (16.64 lbs.) |
| Maximum Discharge Current |
320A (5 sec) |
| Internal Resistance |
Approx. 8.6 mΩ |
| Operating Temperature Range |
Discharge：-15℃~50℃(5°F~122°F) |
| Charge：-15℃~40℃(5°F~104°F) |
|
| Storage：-15℃~40℃(5°F~104°F) |
|
| Nominal Operating Temperature Range |
25°C ± 3°C (77°F ± 5°F) |
| Float Charging Voltage |
13.5 to 13.8 VDC/unit Average at 25°C (77°F) |
| Recommended Maximum Charging current limit |
7.2A |
| Equalization and Cycle Service |
14.4 to 15.0 VDC/unit Average at 25°C (77°F) |
| Self Discharge |
Less than 10% after 90 days, can be stored up to 6 months at 25℃ (77℉) |
| Terminal |
I1-Thread lead alloy recessed terminal to accept M5 bolt |
| Container Material : |
ABS(UL94-HB) |
CSB Battery 12V 24AH - Electric Vehicles Model : EVH12240
