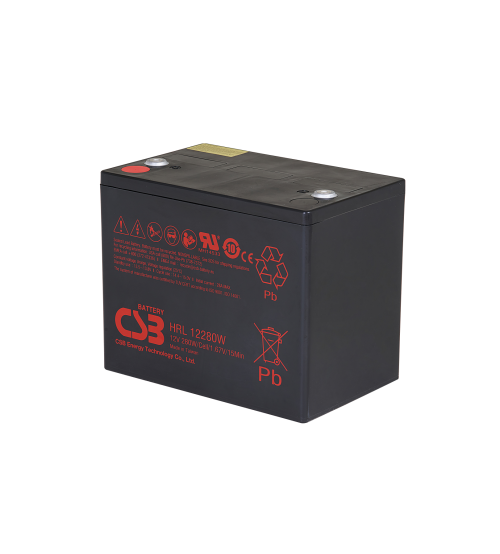

CSB Battery 12V 280W/C-15M (70AH) - Model : HRL12280WFR
د.ب.0.000
In stock
Product Details
HRL 12280W : 12V 280.0w/cell
HRL 12280W is specially designed for high efficient discharge and long life.application. It\'s characteristics are small volume, light weight and high discharge efficiency. It can be used up to 10 years in standby service.
Specification
| Cells Per Unit |
6 |
| Voltage Per Unit |
12 V |
| Capacity |
280W @15 minute-rate to 1.67V per cell @25℃ (77°F) |
| Weight |
Approx. 25.8kg (56.86 lbs) |
| Maximum Discharge Current |
800A (5sec) |
| Internal Resistance |
Approx. 3.5 mΩ |
| Operating Temperature Range |
Discharge：-15℃~50℃(5°F~122°F) |
| Charge：-15℃~40℃(5°F~104°F) |
|
| Storage：-15℃~40℃(5°F~104°F) |
|
| Nominal Operating Temperature Range |
25℃±3℃ (77°F±5°F) |
| Float Charging Voltage |
13.5 to 13.8 VDC/unit Average at 25℃ (77°F) |
| Recommended Maximum Charging Current Limit |
28A |
| Equalization and Cycle Service |
14.4 to 15.0 VDC/Unit Average at 25℃(77°F) |
| Self Discharge |
It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃ |
| Terminal |
I2-Thread lead alloy recessed terminal to accept M6 bolt |
| Container Material |
Polypropylene(UL 94-HB) & Flammability resistance of (UL 94-V0) can be available upon request. |
CSB Battery 12V 280W/C-15M (70AH) - Model : HRL12280WFR
