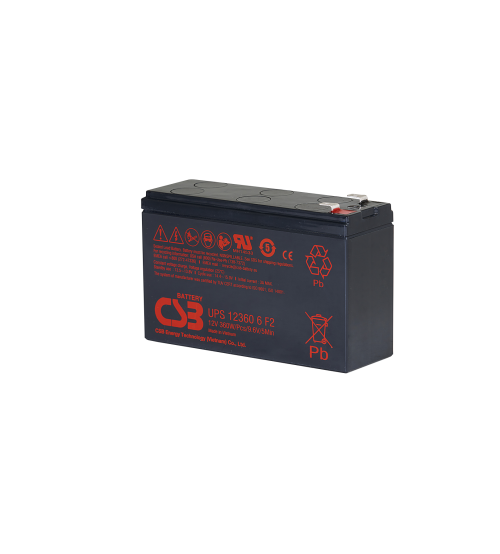

CSB Battery 12V 360W (7AH) - Model : UPS123606F2F1

Cells Per Unit

6

Voltage Per Unit

12 V

Capacity

60W @ 5minute-rate to 1.6V per cell @25°C (77°F)

Weight

Approx . 1.97 Kg( 4.34 lbs)

Maximum Discharge current

100/130A (5sec)

Internal Resistance

Approx . 20.70 mΩ

Operating Temperature Range

Discharge：-15℃~50℃ (5°F~122°F)

Charge：-15℃~40℃ (5°F~104°F)

Storage：-15℃~40℃ (5°F~104°F)

Nominal Operating Temperature Range

25°C ±3°C (77°F ± 5°F)

Float charging voltage

13.5 to 13.8 VDC/unit Average at 25°C (77°F)

Recommended Maximum Charging current limit

3.0A

Equalization Charging Voltage

14.4 to 15.0 VDC/unit Average at 25°C (77°F)

Self Discharge

Less than 10% after 90 days, can be stored up to 6 months at 25℃ (77℉)

Terminal

F1/F2 terminal -Faston Tab 187/250

Container Material

ABS (UL 94-HB) & Flame Retardant (94-V0) available upon request
