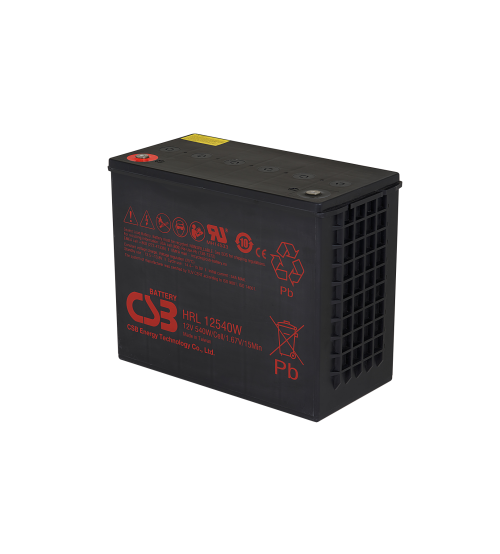

CSB Battery 12V 540W/C-15M (135AH) - Model : HRL12540WFR
د.ب.0.000
In stock
Product Details
HRL 12540W : 12V 540.0w/cell
HRL 12540W is specially designed for high efficient discharge and long life.application. It\'s characteristics are small volume, light weight and high discharge efficiency. It can be used up to 10 years in standby service.
Specification
| Cells Per Unit |
6 |
| Voltage Per Unit |
12 V |
| Capacity |
540W @15 minute-rate to 1.67V per cell @25℃ (77°F) |
| Weight |
Approx.43.9 kg(96.76 lbs) |
| Maximum Discharge Current |
800A(5sec) |
| Internal Resistance |
Approx. 2.6 mΩ |
| Operating Temperature Range |
Discharge: -15℃ ~50℃ ( 5°F ~122°F ) |
| Charge: -15℃ ~40℃ ( 5°F ~104°F ) |
|
| Storage: -15℃ ~40℃ ( 5°F ~104°F ) |
|
| Nominal Operating Temperature Range |
25℃±3℃ (77°F±5°F) |
| Float Charging Voltage |
13.5 to 13.8 VDC/unit Average at 25℃ (77°F ) |
| Recommended Maximum Charging Current Limit |
54A |
| Equalization and Cycle Service |
14.4 to 15.0 VDC/unit Average at 25℃ (77°F ) |
| Self Discharge |
CSB Batteries can be stored for more than 6 months at 25℃ (77°F). Please charge batteries before using. For higher temperatures the time interval will be shorter. |
CSB Battery 12V 540W/C-15M (135AH) - Model : HRL12540WFR
