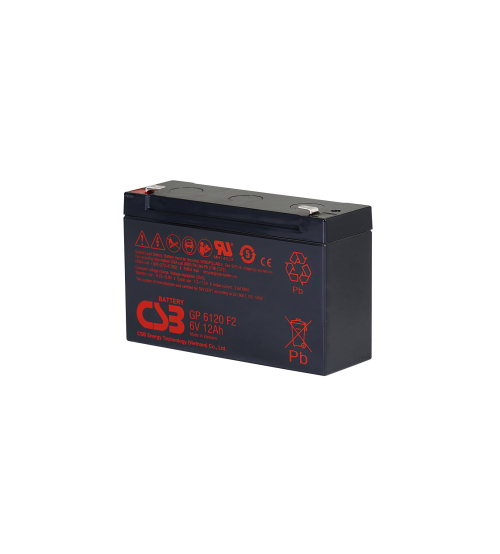

CSB Battery 6V 12AH - Model : GP6120F1
د.ب.0.000
In stock
Product Details
GP 6120 : 6 V 12 Ah
GP 6120 is a general purpose battery up to 5 years in standby service.
As with all CSB batteries, all are rechargeable, highly efficient, leak proof and maintenance free.
Specification
| Cells Per Unit |
3 |
| Voltage Per Unit |
6 V |
| Capacity |
12 Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F) |
| Weight |
Approx. 1.85kg. (4.08 lbs.) |
| Maximum Discharge current |
150A/180A (5sec.) |
| Internal Resistance |
Approx. 8.9mΩ |
| Operating Temperature Range |
Discharge：-15℃~50℃(5°F~122°F) |
| Charge：-15℃~40℃(5°F~104°F) |
|
| Storage：-15℃~40℃(5°F~104°F) |
|
| Nominal Operating Temperature Range |
25°C ± 3°C (77°F± 5°F) |
| Float charging voltage |
6.75 to 6.9 VDC/unit Average at 25℃ (77°F ) |
| Recommended Maximum Charging current limit |
3.6A |
| Equalization and Cycle Service |
7.2 to 7.5 VDC/unit Average at 25℃ (77°F ) |
| Self Discharge |
It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃ |
| Terminal |
F1/F2-Faston Tab187/250 |
| Container Material |
ABS(UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request. |
