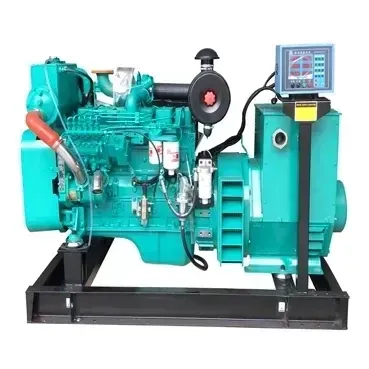

Cummins 6BTA5.9-GM83 engine
6BT5.9 Marine Auxiliary Engines for Commercial Applications Features and Benefits Engine Design – Robust engine block designed for continuous duty operation and long life. Single Lubrication System – Standard capacity (14.2 L) oil pan available with rear, front or center sump for installation flexibility.
Spin on Cummins lube filters cylinder head with four valves per cylinder enhances Electronics – 24v standard electrical system with Fuel System – Rotary fuel pump with optional Certifications – Marine Classification Society electronic governor for precise fueling and engine.
| General data of Cummins 6BT5.9-GM83 Marine Auxiliary Engine |
|
| Engine Model |
Cummins 6BT5.9-GM83 |
| Type |
6 cylinder in line |
| Displacement |
5.9 L |
| Bore&Stroke |
102×120 mm |
| Dry Weight |
426 KG |
| Dimension(L*W*H) |
1181.58*684.2*1127.58 |
| Aspiration |
Turbocharged |
| Fuel System |
A Pump/GAC Governor Regulation ≤3% |
| Coolant capacity-engine only |
9.9 litre |
| Idle speed |
950-1050 RPM |
| Compression ratio |
17.3:1 |
| Piston Speed |
6 m/sec |
| Firing Order |
1-5-3-6-2-4 |
| Rated Output |
83/KW/112HP |
| Standby Output |
92KW/125HP |
| Rated Speed(RPM) |
1500 |
| Frequency(HZ) |
50 |
| Fuel Consumption/rated output |
214 g/KW.h |
| Fuel Consumption/standby output |
216 g/KW.h |
