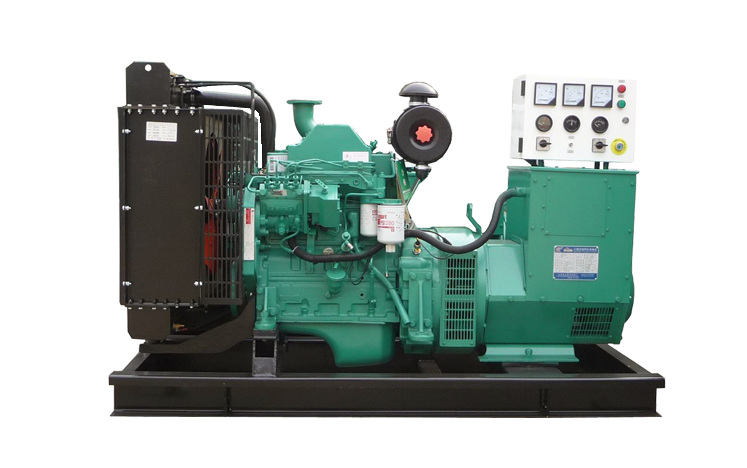

Cummins model 4BTA3.9
get offer 0.00
In stock
Product Details
| OPTION NUMBER | OPTION NAME | QTY | OPTION NUMBER | OPTION NAME | QTY |
| ABP9782-02-1ZZ | BLOCK,ENGINE | 1 | LC 9018ZZ | Cooler,Engine oil | 1 |
| 3927772 | BEARING,CRANKSHAFT THRUS | 1 | C3900632 | SCREW,HEX FLANGE HEAD | 14 |
| 3937214 | NOZZLE,PISTON COOLING | 4 | C3906619 | PLUG, PIPE | 1 |
| C3901306 | BUSHING | 1 | C3908616 | Cartridge,Lub oil filter | 1 |
| C3903920 | BLOCK，CYLINDER | 1 | C3942915 | Gasket,filter head | 1 |
| C3007635 | PLUG,EXPANSION | 2 | C3957543 | CORE,COOLER | 1 |
| C3900965 | PLUG,EXPANSION | 4 | C4932124 | GASKET,OIL COOLER CORE | 1 |
| C3904217 | Screw,Hexagon Head Cap | 10 | C4934218 | HEAD,LUB OIL COOLER | 1 |
| C3913917 | CAP,MAIN BEARING | 5 | LG90372ZZ | GAUGE,OIL LEVEL | 1 |
| C3900068 | DOWEL,RING | 2 | C3900629 | SCREW,HEX FLANGE HEAD | 1 |
| C3900257 | DOWEL, PIN | 2 | C3900955 | PLUG,EXPANSION | 2 |
| C3900687 | PLUG,EXPANSION | 1 | C4935907 | CLIP | 1 |
| C3902343 | DOWEL,RING | 2 | C4937482 | DIPSTICK | 1 |
| C3904483 | DOWEL, PIN | 1 | C4937483 | TUBE,OIL GAUGE | 1 |
| C3929016 | BEARING,MAIN | 4 | C4991519 | NUT,REGULAR HEXAGON | 1 |
| C3929021 | BEARING,CRANKSHAFT THRUS | 5 | LP 9062ZZ | PUMP,LUBRICATING OIL | 1 |
| C3929027 | Gear, Crankshaft | 1 | C3900677 | SCREW,HEXAGON HEAD CAP | 4 |
| C3929036 | Crankshaft,Engine | 1 | C4939585 | PUMP,LUBRICATING OIL | 1 |
| AC 9243ZZ | CLEANER,AIR | 1 | OB 9496ZZ | COVER,CYLINDER BLOCK | 1 |
| C3902662 | NUT,HEXAGON FLANGE | 2 | C101322 | CAP,FILLER | 1 |
| C3903990 | SCREW,HEX FLANGE HEAD | 2 | C3008468 | PLUG,PIPE | 1 |
| C3910495 | SCREW,HEX FLANGE HEAD CA | 2 | C3901859 | SCREW,HEX FLANGE HEAD CA | 2 |
| C3970588 | CLEANER,AIR | 1 | C3906696 | SEAL,RECTANGULAR RING | 2 |
| C3976063 | BRACKET,AIR CLEANER | 1 | C3911696 | TUBE,OIL FILLER | 1 |
| C4932594 | BRACE,CONNECTION | 1 | C3935502 | CONNECTION,SPACER | 1 |
| AP 9786ZZ | APPROVAL,AGENCY | 1 | OP 9004ZZ | PAN,OIL | 1 |
| C4928977 | SCREW,DRIVE | 2 | C3900630 | Screw,Hex flange headcap | 1 |
| C4992260 | DATAPLATE | 1 | C3901049 | PAN,OIL | 1 |
| BP 9098ZZ | COVER,FRONT GEAR | 1 | C3902425 | SEALING WASHER | 1 |
| A3918674ZZ | COVER,GEAR | 1 | C3905206 | Connection,Oil suction | 1 |
| C4991279 | COVER,GEAR | 1 | C3920773 | WASHER,SEALING | 1 |
| C4991305 | SEAL,OIL | 1 | C3924147 | PLUG，THREADED | 1 |
| C3900629 | SCREW,HEX FLANGE HEAD | 5 | C3924148 | PLUG，THREADED | 1 |
| C3900629 | SCREW,HEX FLANGE HEAD | 11 | C3938157 | Gasket,Falnge | 1 |
| C3900633 | SCREW,HEX FLANGE HEAD | 2 | OP 9704ZZ | MOUNTING,OIL PAN | 1 |
| C3900633 | SCREW,HEX FLANGE HEAD | 9 | C3900630 | Screw,Hex flange headcap | 2 |
| C3903463 | COVER，ACCESS HOLE | 1 | C3920400 | SCREW,HEX FLANGE HEAD CA | 28 |
| C3903475 | SEAL，RECTANGLE | 1 | C3938162 | Gasket,Oil pan | 1 |
| C3907998 | SCREW,ROUND HEAD CAP | 2 | PP43145ZZ | PARTS,PERFORMANCE | 1 |
| C3913995ZZ | HOUSING,TIMING PIN | 1 | C3356586ZZ | INJECTOR | 1 |
| C3903924 | PIN,TIMING | 1 | C3909356 | Seal,Rectangular Ring | 4 |
| C3904849 | RING,RETAINING | 1 | C4943468 | INJECTOR | 4 |
| C3913994 | SEAL，O RING | 1 | C3975389ZZ | CAMSHAFT | 1 |
| C3919683 | HOUSING,TIMING PIN | 1 | C3900227 | SCREW,HEXGON HEAD CAP | 2 |
| C3915772 | SEAL，RECTANGLE | 1 | C3902332 | KEY,PLAIN WOODRUFF | 1 |
| C3918673 | GASKET,GEAR COVER | 1 | C3927155 | SUPPORT,CAMSHAFT THRUST | 1 |
| C3938156 | GASKET,GEAR HOUSING | 1 | C3929028 | Gear,Camshaft | 1 |
| C3960623 | HOUSING,GEAR | 1 | C3929885 | CAMSHAFT | 1 |
| BP 9704ZZ | LEVER,ROCKER | 1 | C3975390ZZ | PISTON,ENGINE | 1 |
| C3284377 | ROD,PUSH | 8 | C3904531 | RING,COMPRESSION PISTON | 4 |
| C3901221 | SCREW,HEXAGON HEAD CAP | 4 | C3918315 | Ring,Compression Piston | 4 |
| C3920781 | Screw,hex flange head ca | 4 | C3920691 | RING,RETAINING | 4 |
| C3934920 | Support,Rocker lever | 4 | C3920691 | RING,RETAINING | 4 |
| BP 9705ZZ | FOLLOWER,CAM | 1 | C3926631 | PISTON,ENGINE | 4 |
| C3931623 | TAPPET,VALVE | 8 | C3932520 | Ring,Oil Piston | 4 |
| CA 9125ZZ | PLUMBING,AIR CLEANER | 1 | C3934047 | Pin,Piston | 4 |
| C3978436 | CLAMP,T BOLT | 2 | C3942581 | Rod,Engine Connecting | 4 |
| C4936465 | HOSE,ELBOW | 1 | C3900919 | Screw,Connecting Rod | 2 |
| CM 9001ZZ | COVER,CAM FOLLOWER | 1 | C4891178 | Bushing | 1 |
| C3283767 | GASKET,PUSH ROD COVER | 1 | C3971970 | BEARING,CONNECTING ROD | 8 |
| C3900630 | Screw,Hex flange headcap | 2 | PP97016ZZ | HEAD,CYLINDER | 1 |
| C3918612 | HOSE，PLAIN | 1 | C3008468 | PLUG,PIPE | 2 |
| C3936188 | COVER,PUSH ROD | 1 | C3906619 | PLUG, PIPE | 1 |
| C4928971 | CLAMP,T BOLT | 1 | C3906619 | PLUG, PIPE | 1 |
| C4994848 | SEAL,GROMMET | 2 | C3920779 | Screw,Hex flange head ca | 4 |
| DA 9208ZZ | DAMPER,VIBRATION | 1 | C3920780 | Screw,hex flange head ca | 10 |
| C3903857 | SCREW,HEX FLANGE HEAD CA | 4 | C3967432 | HEAD,CYLINDER | 1 |
| C3958258 | DAMPER,VIBRATION | 1 | 3900250 | COLLET,VALVE | 16 |
| C4932908 | FLANGE,CRANKSHAFT | 1 | C3916691 | SPRING,VALVE | 4 |
| DF 9186ZZ | DRIVE,FRO GER TRA ACC | 1 | C3926700 | SPRING,VALVE | 4 |
| C3900630 | Screw,Hex flange headcap | 2 | C3957912 | SEAL,VALVE STEM | 8 |
| C3900965 | PLUG,EXPANSION | 1 | C3957913 | RETAINER,VALVE SPRING | 8 |
| C3901249 | SCREW,HEX FLANGE HEAD | 2 | C3966448 | HEAD,CYLINDER | 1 |
| C3906619 | PLUG, PIPE | 1 | C3812092 | Plug,Pansion | 3 |
| C3929751 | Gasket,Acc drive cover | 1 | C4994143 | VALVE,EXHAUST | 4 |
| C4942479 | PLATE,COVER | 1 | C4995554 | VALVE,INTAKE | 4 |
| DL 9320ZZ | LOCATION,DRAIN | 1 | PP97342ZZ | MOUNTING,CYLINDER HEAD | 1 |
| C4938649 | CONNECTOR,BANJO | 1 | C3283333 | GASKET,CYLINDER HEAD | 1 |
| EA 9098ZZ | ACCESSORIES,ELECTRICAL | 1 | PP99472ZZ | TURBOCHARGER | 1 |
| C3901249 | SCREW,HEX FLANGE HEAD | 1 | C3818823 | STUD | 4 |
| C4932505 | WIRE,GROUND | 1 | C3818824 | NUT,HEXAGON FLANGE | 4 |
| EC 9052ZZ | THERMOSTAT | 1 | C3901356 | GASKET,TURBOCHARGER | 1 |
| C4930315 | THERMOSTAT | 1 | C4048417 | TURBOCHARGER | 1 |
| EE 9314ZZ | ALTERNATOR | 1 | RE 9055ZZ | SUPPORT,REAR ENGINE | 1 |
| C4938600 | ALTERNATOR | 1 | C3335006 | SCREW,HEXAGON HEAD CAP | 8 |
| EH97541ZZ | MOUNTING,ALTERNATOR | 1 | C3967119 | WASHER,SPRING | 8 |
| C3900631 | SCREW,HEX FLANGE HEAD | 3 | C3976617 | SUPPORT,REAR ENGINE | 2 |
| C3900631 | SCREW,HEX FLANGE HEAD | 1 | SB 9104ZZ | ACCESSORIES,ELE STARTING | 1 |
| C3901249 | SCREW,HEX FLANGE HEAD | 1 | C3967109 | WASHER,PLAIN | 4 |
| C3903105 | SCREW,HEX FRANGE HEAD CA | 1 | C3967110 | WASHER,SPRING | 4 |
| C3903210 | NUT,HEXAGON FLANGE | 1 | C4988354 | RELAY | 2 |
| C3910923 | SUPPORT,ALTERNATOR | 1 | C4988412 | BRACKET,RELAY | 1 |
| C3910924 | SUPPORT,ALTERNATOR | 1 | C4991519 | NUT,REGULAR HEXAGON | 4 |
| EH97545ZZ | DRIVE,ALTERNATOR | 1 | C4991520 | SCREW,HEXAGON HEAD CAP | 4 |
| C3285958 | BRACKET,BELT TENSIONER | 1 | SM 9702ZZ | MOUNTING，STARTING | 1 |
| C3900631 | SCREW,HEX FLANGE HEAD | 1 | C3968470 | SCREW,TWELVE POINT | 3 |
| C3911568 | BELT，V RIBBED | 1 | SP 9108ZZ | SPACER,FAN PILOT | 1 |
| C3925186 | SCREW，FLAT HEAD CAP | 1 | C3900589 | NUT，HEXAGON FLANGE | 4 |
| C3937553 | TENSIONER,BELT | 1 | C3925344 | SCREW,HEX FLANGE HEAD CA | 4 |
| C3967107 | WASHER,PLAIN | 1 | C4931787 | FLANGE,CONNECTION | 1 |
| C3979347 | SCREW,HEXAGON HEAD CAP | 1 | C4988581 | NUT,HEXAGON FLANGE | 4 |
| EM 9311ZZ | SUPPORT,FRONT ENGINE | 1 | C4991497 | STUD | 4 |
| C3335006 | SCREW,HEXAGON HEAD CAP | 6 | ss 9001zz | PAINT | 1 |
| C3967119 | WASHER,SPRING | 6 | C3991084 | NAMEPLATE | 1 |
| C4928962 | WASHER,PLAIN | 6 | SS 9530ZZ | KIT,ENGINE INSTALLATION | 1 |
| C4988361 | SUPPORT,FRONT ENGINE | 1 | C3903380 | SEAL,BANJO CONNECTOR | 3 |
| C4988362 | SUPPORT,FRONT ENGINE | 1 | C3906694 | SEAL，RECTANGLE | 1 |
| EO 9106ZZ | DEVICE,SIGNAL GENERATING | 1 | C3906695 | SEAL，RECTANGLE | 1 |
| C3967250 | SENSOR,TEMPERATURE | 1 | C3910824 | SEAL,O RING | 3 |
| EO 9107ZZ | SENSOR,OIL PRESSURE | 1 | C3920773 | WASHER,SEALING | 1 |
| C3967251 | SENSOR,OIL PRESSURE | 1 | C3930906 | Gasket,Valve cover | 3 |
| EO 9156ZZ | SENSOR,SPEED | 1 | C3936876 | SEAL，RECTANGULAR RING | 1 |
| C3971994 | SENSOR,SPEED | 2 | C3937706 | GASKET,OIL DRAIN | 1 |
| FA 9514ZZ | DRIVE,FAN | 1 | C3939258 | GASKET，COVER PLATE | 1 |
| C3900678 | SCREW，HEX FLANGE HEAD | 4 | C3942915 | Gasket,filter head | 1 |
| C3914458 | FULLEY,FAN | 1 | C3963983 | WASHER,SEALING | 2 |
| C4932907 | SUPPORT,FAN | 1 | C4932124 | GASKET,OIL COOLER CORE | 1 |
| FE 9081ZZ | PLUMBING,AIR FUEL CONTRO | 1 | ST 9427ZZ | MOTOR,STARTING | 1 |
| C3906619 | PLUG, PIPE | 1 | C4935789 | MOTOR,STARTING | 1 |
| FF 9007ZZ | FILTER，FUEL | 1 | TB91669ZZ | ARRANGEMENT,TURBOCHARGER | 1 |
| C3903293 | NUT,HEX FLANGE | 1 | C3415334 | DECAL | 1 |
| C3906694 | SEAL，RECTANGLE | 1 | C3900629 | SCREW,HEX FLANGE HEAD | 6 |
| C3906695 | SEAL，RECTANGLE | 1 | C3909394 | DRAINCOCK | 1 |
| C3925955 | ADAPTER,FILTER HEAD | 1 | C3914856 | GASKET,CONNECTION | 1 |
| C3930942 | FILTER,FUEL | 1 | C3918109 | SCREW | 4 |
| C3931063 | FILTER,FUEL | 1 | C3929881 | GASKET,EXHAUST MANIFOLD | 4 |
| C4934663 | HEAD,FUEL FILTER | 1 | C3930249 | SCREW,HEX FRANGE HEAD CA | 8 |
| FF90114ZZ | PLUMBING,FUEL FILTER | 1 | C3938153 | GASKET,INT MANIFOLD COVE | 1 |
| C3863988 | WASHER,SEALING | 2 | C3970408 | HOSE,PLAIN | 1 |
| C3905860ZZ | SCREW,BANJO CONNECTOR | 1 | C4928973 | CLAMP,T BOLT | 2 |
| C3911446 | SCREW,BANJO CONNECTOR | 1 | C4938507 | AFTERCOOLER | 1 |
| C3939570 | Screw,Captive washer cap | 1 | C4987913 | PIPE,AIR TRANSFER | 1 |
| C3924725 | SCREW,BANJO CONNECTOR | 1 | C4988420 | MANIFOLD,EXHAUST | 1 |
| C3963983 | WASHER,SEALING | 2 | C4991510 | WASHER,SEALING | 4 |
| C4989352 | TUBE,FUEL SUPPLY | 1 | TH 9037ZZ | HOUSING,THERMOSTAT | 1 |
| FH 9634ZZ | HOUSING,FYYWHEEL | 1 | C3281246 | Bracket,Lifting | 1 |
| C3008469 | PLUG,PIPE | 1 | C3285102 | HOUSING,THERMOSTAT | 1 |
| C3900225 | SCREW,HEXAGON HEAD CAP | 2 | C3900632 | SCREW,HEX FLANGE HEAD | 1 |
| C3900627 | SCREW,HEX FLANGE HEAD | 6 | C3923331 | Gasket,Thm housing cover | 1 |
| C3908095 | Plate,Cover | 1 | C3926972 | SCREW,HEX FLANGE HEAD CA | 2 |
| C3910248 | PLUG,O RING | 1 | TL 9103ZZ | LEVER,THROTTLE | 1 |
| C3910260 | SEAL,O RING | 1 | C3967107 | WASHER,PLAIN | 2 |
| C3910540 | SCREW,HEX FRANGE HEAD | 8 | C3967108 | WASHER,SPRING | 2 |
| C3912473 | SEAL,RECTANGULAR RING | 1 | C4932692 | BRACKET,THROTTLE CONTROL | 1 |
| C3928989 | CLIP | 1 | C4991523 | SCREW,HEXAGON HEAD CAP | 2 |
| C3938159 | GASKET,REAR COVER | 1 | TO90000ZZ | TOOL, SERVICE | 1 |
| C4933323ZZ | COVER,REAR | 1 | C4996942 | TOOL,SERVICE | 1 |
| C3936904 | Cover,Rear | 1 | C4996951 | BAG,SERVICE TOOL | 1 |
| C4982415 | SEAL,OIL | 1 | TP97346ZZ | PLUMBING,TURBOCHARGER | 1 |
| C4947579 | HOUSING,FLYWHEEL | 1 | C3900631 | SCREW,HEX FLANGE HEAD | 2 |
| FN 9184ZZ | FAN,ENGINE | 1 | C3937706 | GASKET,OIL DRAIN | 1 |
| C4931786 | FAN,ENGINE | 1 | C3974116 | HOSE,FLEXIBLE | 1 |
| FP91353ZZ | COUPLING,FUEL PUMP | 1 | C3975113 | CONNECTOR,MALE | 2 |
| C3900631 | SCREW,HEX FLANGE HEAD | 2 | C3977614 | CONNECTION,TUR OIL DRAIN | 1 |
| C3902112 | SCREW,HEX FLANGE HEAD CA | 2 | VC 9001ZZ | Cover,Valve | 1 |
| C3902662 | NUT,HEXAGON FLANGE | 4 | C3901895 | CAP,FILLER | 1 |
| C3903112 | SCREW,HEX FLANGE HEAD CA | 1 | C3907049 | Screw,Hex flange head ca | 4 |
| C3906619 | PLUG, PIPE | 1 | C3928404 | Cover,Valve | 3 |
| C3960730 | GEAR,FUEL PUMP | 1 | C3928405 | Cover,Valve | 1 |
| C3977315 | STUD | 4 | C3930906 | Gasket,Valve cover | 4 |
| C3977317 | SUPPORT,FUEL PUMP | 1 | C3935449 | ISOLATOR,NOISE | 4 |
| C4981372 | CONNECTOR,MALE | 1 | C3936876 | SEAL，RECTANGULAR RING | 1 |
| C4989351 | SUPPORT,FUEL PUMP | 1 | WA 9759ZZ | PLUMBING,AFTERCOOLER | 1 |
| C4989441 | HOSE,FLEXIBLE | 1 | C3914855 | TUBE,AFTERCOOLER | 1 |
| FP91639ZZ | PUMP,FUEL | 1 | C3918607 | HOSE,ELBOW | 1 |
| C5254841 | PUMP, FUEL INJECTION | 1 | C3918607 | HOSE,ELBOW | 1 |
| FS 9869ZZ | ACCESSORIES,FUEL SYSTEM | 1 | C3918608 | HOSE,ELBOW | 1 |
| C3976729 | ELBOW,MALE ADAPTER | 1 | C3918611 | HOSE，PLAIN | 1 |
| FS 9894ZZ | PUMP,LIFT | 1 | C3934712 | TUBE,AFTERCOOLER | 1 |
| C3415699 | PUMP,FUEL TRANSFER | 1 | C3960514 | CONNECTOR,MALE | 1 |
| C3900631 | SCREW,HEX FLANGE HEAD | 2 | C4928971 | CLAMP,T BOLT | 7 |
| C3914284 | SPACER,MOUNTING | 1 | C4928971 | CLAMP,T BOLT | 1 |
| C3916361 | SCREW,BANJO CONNECTOR | 1 | C4934724 | TUBE,AFTERCOOLER | 1 |
| C3927637 | TUBE,FUEL SUPPLY | 1 | WH 9131ZZ | VENT,ENGINE COOLANT | 1 |
| C3939258 | GASKET，COVER PLATE | 2 | C4938322 | COUPLING，PLAIN HOSE | 1 |
| C3963983 | WASHER,SEALING | 2 | WI 9226ZZ | CONNECTION,WATER INLET | 1 |
| FT 9332ZZ | PLUMBING,FUEL | 1 | C3008469 | PLUG,PIPE | 1 |
| C3284579 | MANIFOLD,FUEL | 1 | C3906697 | SEAL,RECTANGULAR RING | 1 |
| C3903380 | SEAL,BANJO CONNECTOR | 4 | C3973197 | CONNECTION,WATER INLET | 1 |
| C3905307 | SCREW,BANJO CONNECTOR | 4 | C4991495 | SCREW,HEX FLANGE HEAD CA | 3 |
| C3918188 | WASHER，SEALING | 2 | WI 9701ZZ | CONNECTION，WATER INLE | 1 |
| C3924726 | VALVE，CHECK | 1 | C3008468 | PLUG,PIPE | 2 |
| C4928945 | SCREW,HEX FLANGE HEAD CA | 2 | WP 9617ZZ | PUMP,WATER | 1 |
| C4988285 | TUBE,INJECTOR FUEL SUPPL | 1 | C3900227 | SCREW,HEXGON HEAD CAP | 2 |
| C4988286 | TUBE,INJECTOR FUEL SUPPL | 1 | C3906698 | SEAL,RECTANGULAR RING | 1 |
| FW90104ZZ | FYYWHEEL | 1 | C4935793 | PUMP,WATER | 1 |
| C3900269 | Washer,Plain | 4 | XS 9469ZZ | CONNECTION,EXHAUST OUTLE | 1 |
| C3900269 | Washer,Plain | 4 | C3093957 | SCREW,HEX FLANGE HEAD CA | 2 |
| C3901395 | Screw,hexagon head cap | 4 | C3900632 | SCREW,HEX FLANGE HEAD | 2 |
| C3901395 | Screw,hexagon head cap | 4 | C3903990 | SCREW,HEX FLANGE HEAD | 2 |
| C4939064 | FLYWHEEL | 1 | C3971092 | BRACE,TUBE | 1 |
| LA 9113ZZ | BRACKET,LIFTING | 1 | C3971093 | ELBOW,MALE ADAPTER | 1 |
| C3910495 | SCREW,HEX FLANGE HEAD CA | 2 | C4928803 | CLAMP,SPRING HOSE | 2 |
| C3977197 | BRACKET,LIFTING | 1 | C4928804 | GASKET,EXHOUT CONNECTION | 1 |
| LB 9101ZZ | Labeling Engine | 1 | C4928805 | GASKET,EXHOUT CONNECTION | 2 |
| C3974406 | TAG,IDENTIFICATI | 1 | C4991528 | NUT,HEXAGON FLANGE | 2 |
| C3975443 | COVER,PROTECTIVE | 1 | |||
| C4983154 | TAG | 1 | |||
| C4983155 | DECAL | 1 |
Save this product for later
Share this product with your friends
Cummins model 4BTA3.9
