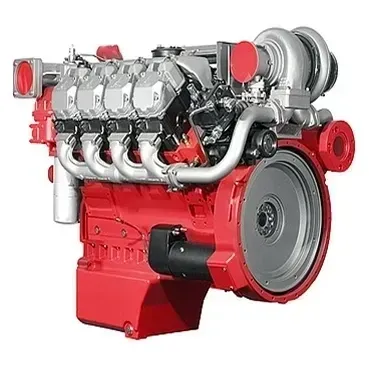

DEUTZ TCD 2015 Series Engine

Engine for agricultural machinery.

V-engine with 90° angle.

Turbocharging and charge air cooling, four-valve technology Extremely compact and powerful with high power density.

Electronic injection system controlled via solenoid valves.

Tried, tested and proven technology, equipped with acoustically optimised components.

Technical data
Emission norms EU IIIA, US T3
Number of cylinders 8
Bore 132 mm
Stroke 145 mm
Displacement 11.9 l
Maximum nominal speed 2100 rpm
Power output 500 kW
at speeds 2100 rpm
Max. torque 2890 Nm
at speeds 1400 rpm
Min. idling speed 600 rpm
Specific fuel consumption 207 g/kWh
Length 1141 mm
Width 932 mm
Height 1172 mm
Weight 1245 kg
