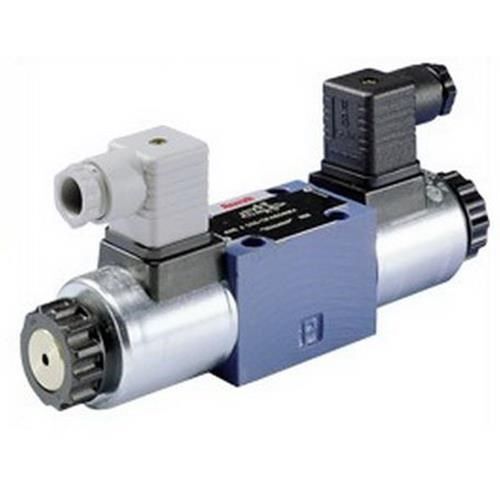

DIRECTIONAL SPOOL VALVES, DIRECT OPERATED, WITH SOLENOID ACTUATION R900589933

Features

• Electrical connection - individual or central connection
• Solenoid coil can be rotated by 90°
• Porting pattern according to ISO 4401-05-04-0-05 and NFPA T3.5.1 R2-2002 D05
• Electrical connection as individual or central connection
• The coil can be changed without having to open the pressure-tight chamber
• 4/3, 4/2 or 3/2 directional design
• High power wet-pin AC or DC solenoids with detachable coil
• Directional valves type WE are solenoid operated directional spool valves. They control the start, stop, and direction of a flow. These directional valves basically consist of housing; one or two solenoids; control spool; and no, one, or two return springs. A full array of spools are possible with variations in voltage and electrical connection, all within the program. Flow and pressure rates cover a wide range of applications.
