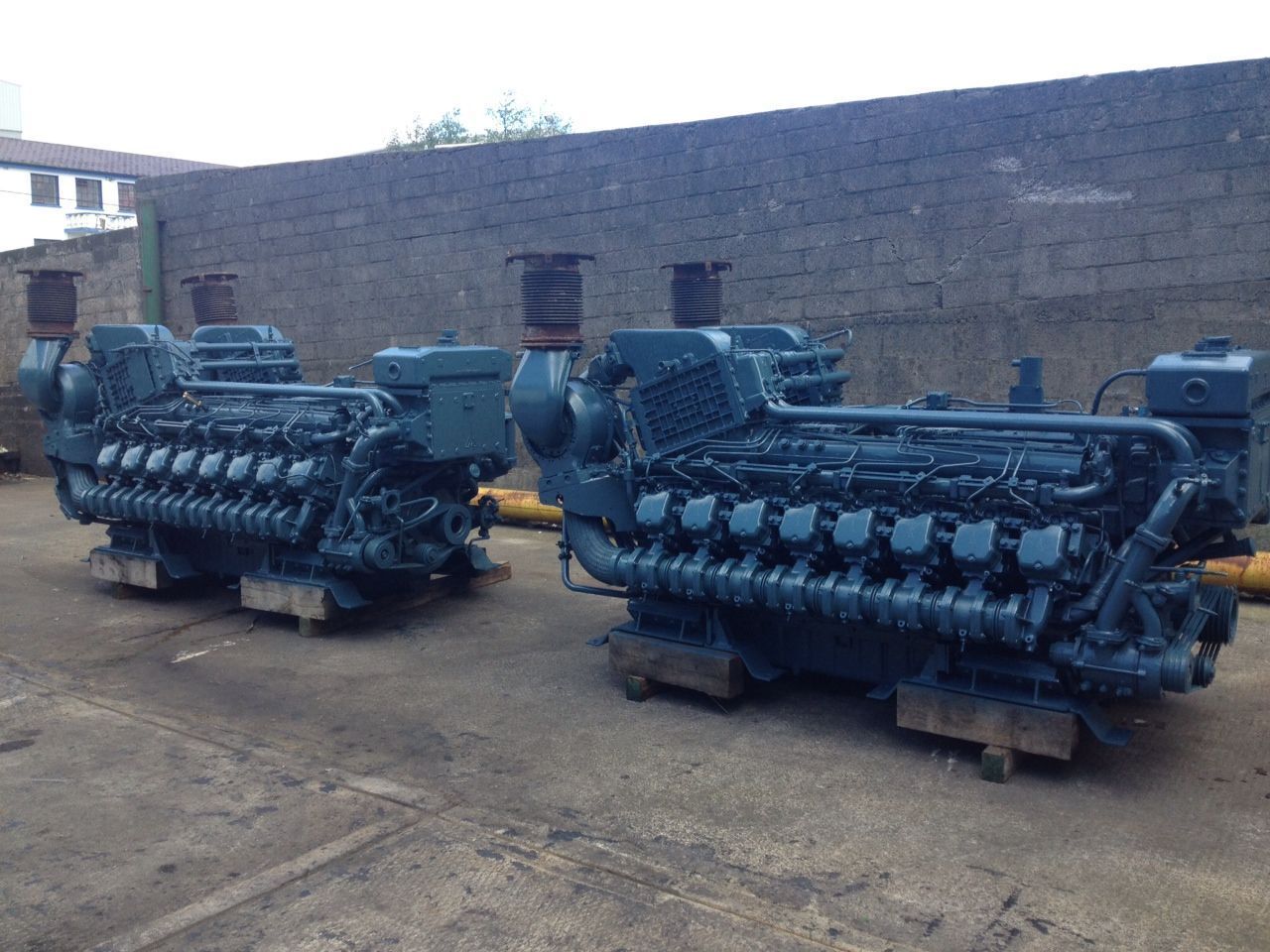

Duetz engine model 6M 816 , 8M 816 , 12M 816 , 16M 816
get offer 0.00
In stock: 3 available
Product Details
| # | description | P/N | |||||
| 1 | Gasket | 04009980 | |||||
| 2 | Rot.shaft lip seal | 01175820 | |||||
| 3 | Gasket | 03373135 | |||||
| 4 | Rot.shaft lip seal | 00094765 | |||||
| 5 | Gasket | 03373097 | |||||
| 6 | Gasket | 03373211 | |||||
| 7 | Locating pin | 04001309 | |||||
| 8 | Big end bearing NORMAL | 02153261 | |||||
| 9 | Hexagon bolt | 02153291 | |||||
| 10 | Piston | 04009723 | |||||
| 11 | Set of pist. Rings | 04054307 | |||||
| 12 | Piston Circlip | 01162736 | |||||
| 13 | Taper collet piece | 01168819 | |||||
| 14 | Valve guide | 04006076 | |||||
| 15 | Valve seat insert | 04000010 | |||||
| 16 | Valve seat insert | 04000011 | |||||
| 17 | Valve spring | 02154473 | |||||
| 18 | Valv.spring retain | 03373427 | |||||
| 19 | Core hole plug | 01165828 | |||||
| 20 | Core hole plug | 01165831 | |||||
| 21 | Core hole plug | 01165837 | |||||
| 22 | Core hole plug | 01166649 | |||||
| 23 | Gasket | 02159580 | |||||
| 24 | Cylind.head gasket | 04050720 | |||||
| 25 | Inlet valve | 04007099 | |||||
| 26 | Exhaust valve | 04007112 | |||||
| 27 | Cylinder head Hexagon bolt | 04006711 | |||||
| 28 | Plain washer | 01181400 | |||||
| 29 | Bush | 02159730 | |||||
| 30 | Centering bush | 02159724 | |||||
| 31 | O-seal | 01213003 | |||||
| 32 | Bush | 02159728 | |||||
| 33 | Centering bush | 02159727 | |||||
| 34 | O-seal | 01212509 | |||||
| 35 | Bush | 02159729 | |||||
| 36 | O-seal | 01212510 | |||||
| 37 | Valve tappet | 6445908 | |||||
| 38 | Pushrod | 02159493 | |||||
| 39 | Hexagon nut | 01216006 | |||||
| 40 | Gasket | 04000838 | |||||
| 41 | Gasket | 03373679 | |||||
| 42 | Gasket | 04002409 | |||||
| 43 | O seal | 01164124 | |||||
| 44 | Nozzle | 04001568 | |||||
| 45 | Sealing ring | 01118647 | |||||
| 46 | Sealing ring | 01118693 | |||||
| 47 | Gasket | 02156432 | |||||
| 48 | Gasket | 02155206 | |||||
| 49 | Cooling water pump | 04005689 | |||||
| 50 | Drain line | 04003787 | |||||
| 51 | Sealing ring | 01118693 | |||||
| 52 | Hollow screw | 01119246 | |||||
| 53 | Thermostat | 01172667 | |||||
| 54 | Gasket | 04003797 | |||||
| 55 | Flange gasket | 01167542 | |||||
| 56 | Gasket | 04003796 | |||||
| 57 | O seal | 01160622 | |||||
| 58 | Gasket | 03374293 | |||||
| 59 | O-seal | 01160620 | |||||
| 60 | Set narrow v-belts | 01161773 | |||||
| 61 | Set narrow v-belts | 01174284 | |||||
| 62 | Gasket | 04001532 | |||||
| 63 | Gasket | 02158888 | |||||
| 64 | Gasket | 04004246 | |||||
| 65 | Gasket | 04002105 | |||||
| 66 | Gasket | 04054670 | |||||
| 67 | Clamping yoke | 03374492 | |||||
| 68 | Hexagon bolt | 01101142 | |||||
| 69 | Lock washer | 01102800 | |||||
| 70 | Starter | 01170391 | |||||
| 71 | Thermometer | 01170158 | |||||
| Trmper tranmitter | 01262492 | ||||||
| feed pump | 01261834 | ||||||
| Gasket Set BA 6 M816 | 02911559 | ||||||
