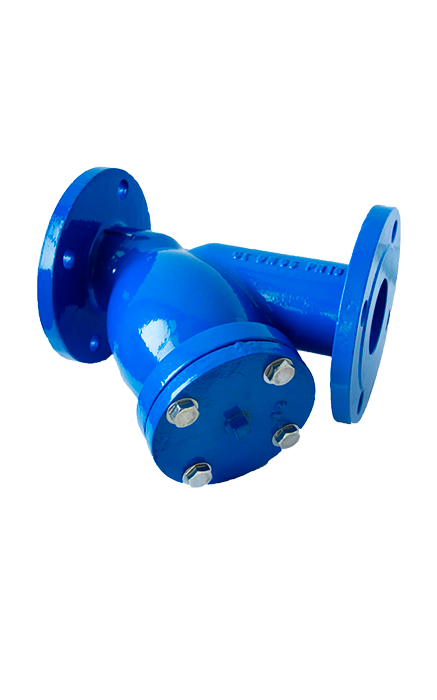

FLANGE STRAINERS TYPE “Y” – 43A

“Y” Strainers used to efficiently retain the elements in the fluid suspension. It has a purge plug for a quick and efficient cleaning of the retained elements and it is 100% water tight.

• 100% water tight.
• Purge plug for an easy cleaning.
• Max. working pressure according to design pressure PN10/16.
• Working temperature between -10ºC and 90ºC.

Utilization

Filters for the retention of elements in suspension, such as stones and other residues found in the conduction.<

Sizes

From DN50 to DN450

Working pressures

PRESSURE (bar): 10-16

Directives

• Hydrostatic tests according to EN 12266-1, class A.
• EC directive.
• Side flanges according to ISO 7005-1.
• Distance between faces according to DIN 3202 F1.
