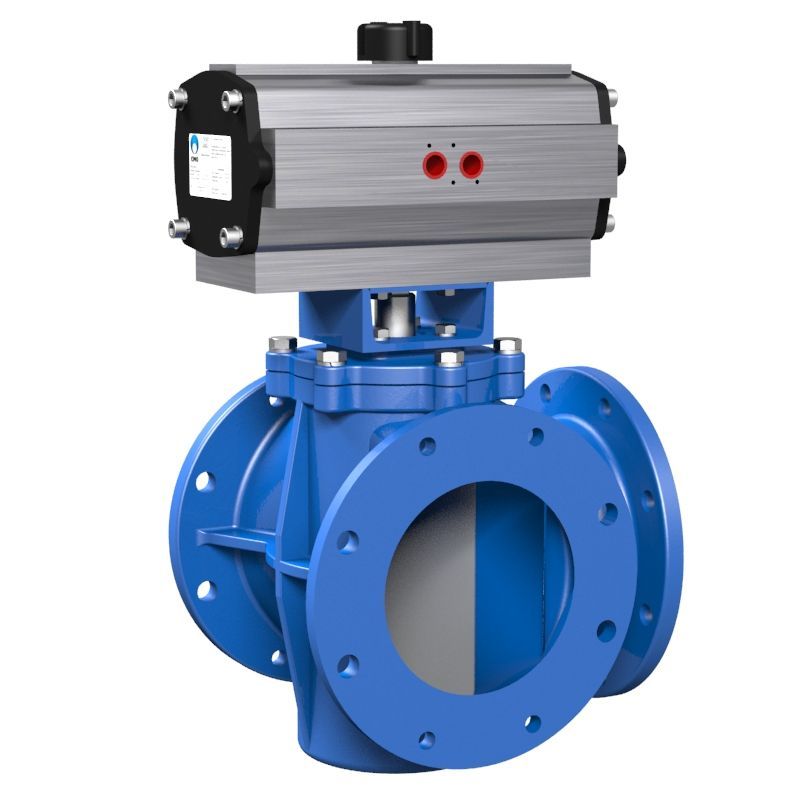

Flanged multi-way valve

• Flanged 3-way and 4-way diverter valve at 90º.
• Monoblock cast iron body with bolted bonnet.
• Multiple body and diverter materials available.
• Face-to-face distance in accordance with CMO Valves standard.
• Though-flow can be straight, L-shaped and T-shaped.

Utilization

This valve is suitable for liquids with dry matter content, products with a concentration of 4% and over. It is specially designed to handle pulp.

Designed for applications such as:

• Paper industry
• Chemical plants

Sizes

DN80 to DN300

* Larger sizes to order.

Working pressures

• DN80 – DN150 = 10 bar
• DN200 = 8 bar
• DN250 – DN300 = 6 bar
• DN350 – DN400 = 5 bar

Directives

APPLICATION OF EUROPEAN DIRECTIVES
(See document of EUROPEAN DIRECTIVES APPLICABLE TO CMO VALVES)

Directives

• Pressure Equipment Directive:
(PED) ART 4.3 /CAT.1.
• Potential Explosive Atmospheres Directive:
(ATEX) CAT.3 ZONA 2 y 22 GD.
