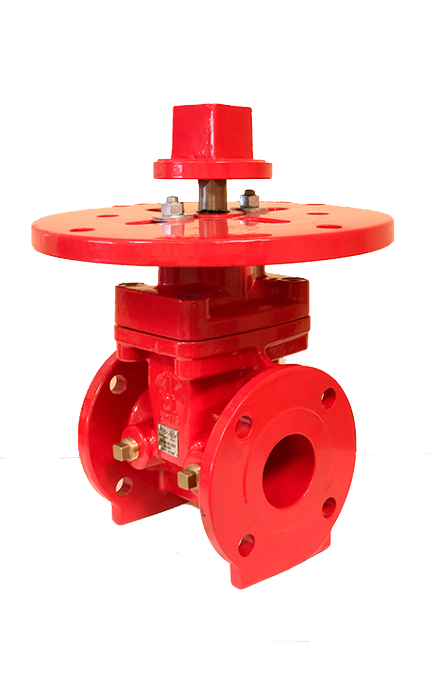

GATE VALVE UL-FM – 11A

Gate valves with non-ascending spindle, for fire installations.

• Minimum head loss.
• Full bore.
• 100% watertight.
• Bidirectional flow.
• RF type DIN PN 10/16 flanges.
• Guided gate to ensure the correct sealing.
• WRAS certificate for drinking water.
• Working temperature between -10ºC and 90ºC.

Utilization

This valve is designed specifically for the fire protection and control sector, its resistance and reliability being the guarantee of proper operation.

Sizes

From DN50 to DN600

Directives

• Pressure Equipment Directive:
(PED) ART 4.3 /CAT.1.
• Potential Explosive Atmospheres Directive:
(ATEX) CAT.3 ZONA 2 y 22 GD.

• Design according to DIN 3352.
• Hydrostatic tests according to EN 12266-1, class A.
• CE Directive.
• Side flanges according to ISO 7005-1
