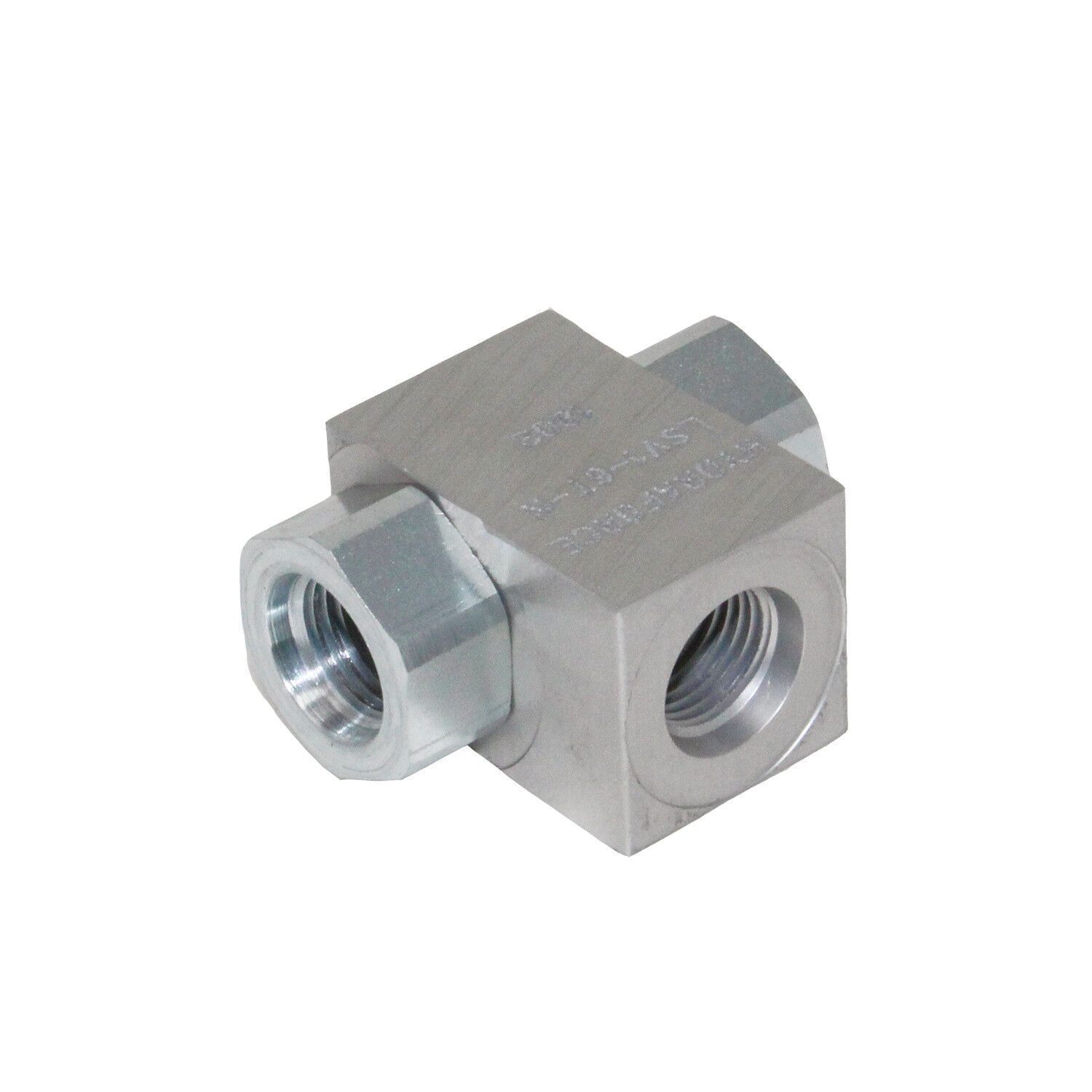

Hydraforce LSV1-6T-N, 3 Port Double Check Shuttle Valve, #6 SAE Ports

Hydraforce LSV1-6T-N

Hydraulic shuttle valve (ball-type) for use as a load-shuttling directional selector. The floating ball will check to the low pressure side.

This is commonly used to direct oil from the high pressure side of a bidirectional hydraulic motor to a pressure-released hydraulic brake.

• Flow Rating: 7 GPM
• Max Operating Pressure 3500 PSI
• Ports: #6 SAE O-Ring (9/16”-18) Thread

Cross Reference Part:

• Skytrak JLG 8902175
