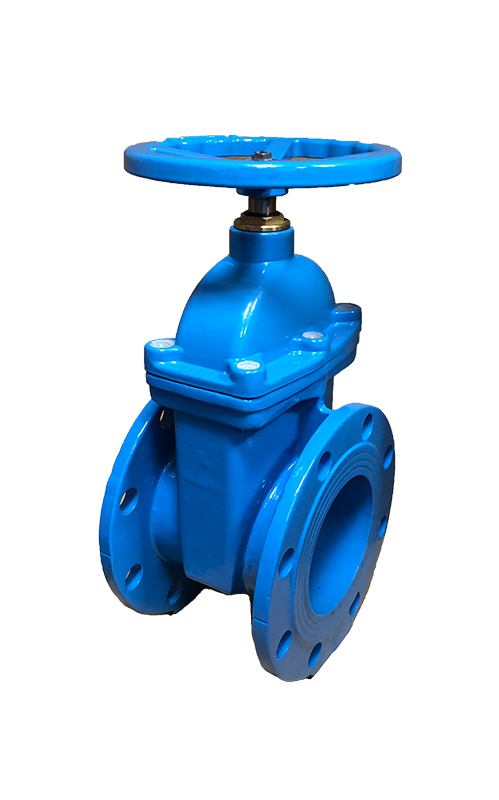

RESILIENT SEATED GATE VALVE -11B

The elastic closing gate valve (WITH REVERSE DIRECTION) is made of ductile iron GGGSO, it is designed to meet the most demanding needs in fields of application such as fire-fighting services, sewage treatment and pumping, irrigation, industrial facilities, construction hydraulic and civil in general. The valves of diameter over DN600 are supplied with gearbox. These valves are only available with face to face distance according to EN 558-1 series 14 (F4).

• Minimum head loss.
• Full bore.
• Repackable under pipeline pressure.
• 100% watertight.
• Bidirectional flow.
• RF type DIN PN 10/16 flanges.
• Guided gate to ensure the correct sealing.
• Bolts protected against environmental conditions.
• WRAS certificate for drinking water.
• Working temperature between -10ºC and 90ºC.
