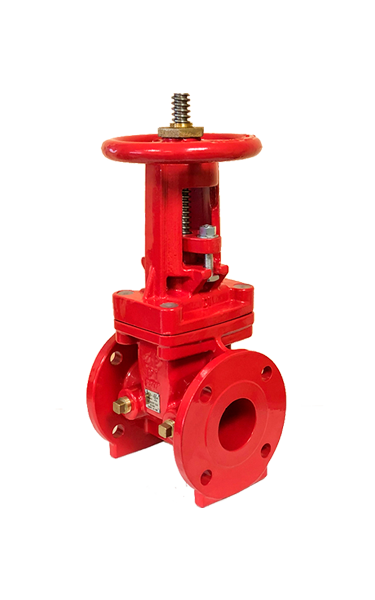

RISING GATE VALVE UL-FM – 11A

• Resilient seat gate valves with minimum head loss.
• Full bore.
• 100% watertight.
• Bidirectional flow.
• RF type DIN PN 10/16 flanges.
• Guided gate to ensure the correct sealing.
• WRAS certificate for drinking water.
• Working temperature between -10ºC and 90ºC

Utilization

Resilient Seat Gate Valve used for depuration and pumping of dirty waters, fire prevention systems, irrigation, industrial pipelines, etc. It has minimum head loss, and it is 100% watertight and full bore.

Sizes

From DN40 to DN600

Working pressures

PRESSURE (bar): 10-16

Directives

• Design according to DIN 3352.
• Hydrostatic tests according to EN 12266-1, class A.
• EC Directive.
• Distance between flanges according to EN 558 series 14.
• Side flanges according to ISO 7005-2.
