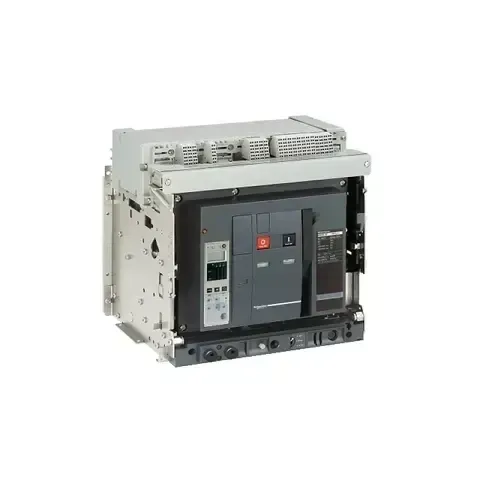

SCHNEIDER - ACB Breaker, MasterPact NW, 5000A, H1, 4 Poles, Drawout, Micrologic 5.0 A

Also includes the following Schneider part numbers:

• 48161: Rear connection upside vertical mounting - for NW 40..50 - 4 poles
• 48166: Rear connection downside vertical mounting - for NW 40..50 - 4 poles
• 48360: Trip unit Micrologic 5.0A for Masterpact NW08 to NW63 circuit breakers, selective protection
• 48384: Modbus COM module - for drawout NW
• 48409: Chassis for drawout NW400b..6300 - H2,HA,HF 4 poles - 6300 A
• 48452: XF closing voltage release, MasterPact NW drawout, 200/250V AC/DC, communicating
• 48461: MX opening voltage release, MasterPact NW drawout, 200/250V AC/DC, communicating
• 48469: Auxiliary contact - ready..close NO/NC 5 A240 V - Masterpact NW - drawout
• 48504: MN undervoltage release for drawout Masterpact NW, 200 VDC to 250 VDC, 200 VAC to 250 VAC 50/60 Hz
• 48527: Motor mechanism MCH, Masterpact NW08 to NW63 drawout circuit breakers, 200 VAC to 240 V AC 50/60 Hz
• 48603: Escutcheon - for drawout Masterpact NW/NW DC 48604: IP54 transparent cover - for Masterpact NW/NW DC

• More Information

  SKU	MG.NW50H14D5-1003
  Brand	SCHNEIDER ELECTRIC
  Family	MasterPact NW
  Amperage Rating	5000 A
  Breaking Capacity	100 kA
  Pole	4 Poles
  Operating Temperature	-25°C To +70°C
  Breaking Capacity Code	H1
  Mounting Mode	Drawout
  Trip/Control Unit Name	Micrologic 5.0 A
  Trip/Control Unit Technology	Electronic
  Supplier Part Number	NW50H14D5-1003
