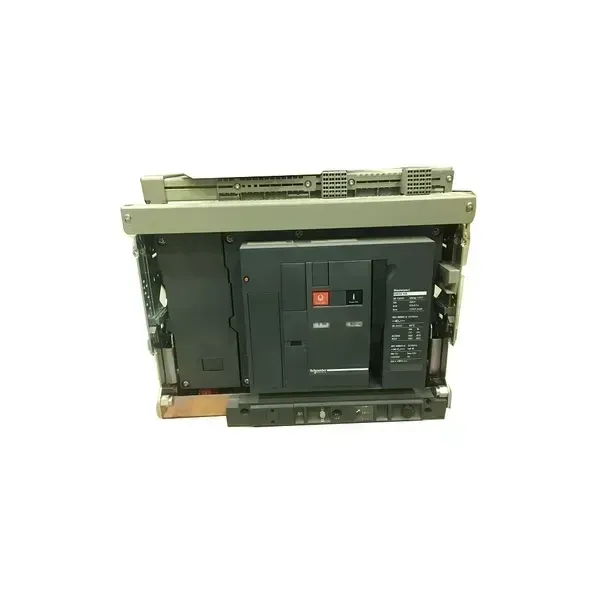

SCHNEIDER - ACB Breaker, MasterPact NW, 800A, H1, 3 Poles, Drawout, Micrologic 6.0 P

Also includes the following Schneider part numbers:

• 48364: Control unit Micrologic 6.0 P, for Masterpact NW drawout, LSIG protections
• 34035: CT neutral or ground fault protection - for NW 08..20
• 48392: Chassis for drawout NW1600 - H1,H10,H2,HA,HA10,HF,N1,NA - 3 poles - 1600 A
• 48133: Rear connection upside vertical mounting - for NW 08..20 - 3 poles
• 48138: Rear connection downside vertical mounting - for NW 08..20 - 3 poles
• 48526: Motor-mechanism - MCH - 100..130 V AC 48483: XF closing voltage release, MasterPact NW drawout, 100/130V AC/DC
• 48493: MX opening voltage release, MasterPact NW drawout, 100/130V AC/DC
• 48503: Voltage release MN - 100..130 V DC/AC 50/60 Hz
• 48469: Auxiliary contact - ready..close NO/NC 5 A240 V - Masterpact NW - drawout

• More Information

  SKU	MG.NW08HA4DXXFFAX7534
  Brand	SCHNEIDER ELECTRIC
  Family	MasterPact NW
  Amperage Rating	800 A
  Breaking Capacity	65 kA
  Pole	3 Poles
  Operating Temperature	-25°C To +70°C
  Breaking Capacity Code	H1
  Mounting Mode	Drawout
  Trip/Control Unit Name	Micrologic 6.0 P
  Supplier Part Number	NW08HA4DXXFFAX7534
