Steel Welded Bar Grating

Discover our versatile range of Steel Welded Bar Grating, engineered for superior strength, durability, and reliable performance in a multitude of industrial, commercial, and architectural applications. Available in both standard steel and galvanized finishes, and with options for plain or serrated surfaces, our grating solutions provide excellent load-bearing capabilities, drainage, and ventilation.

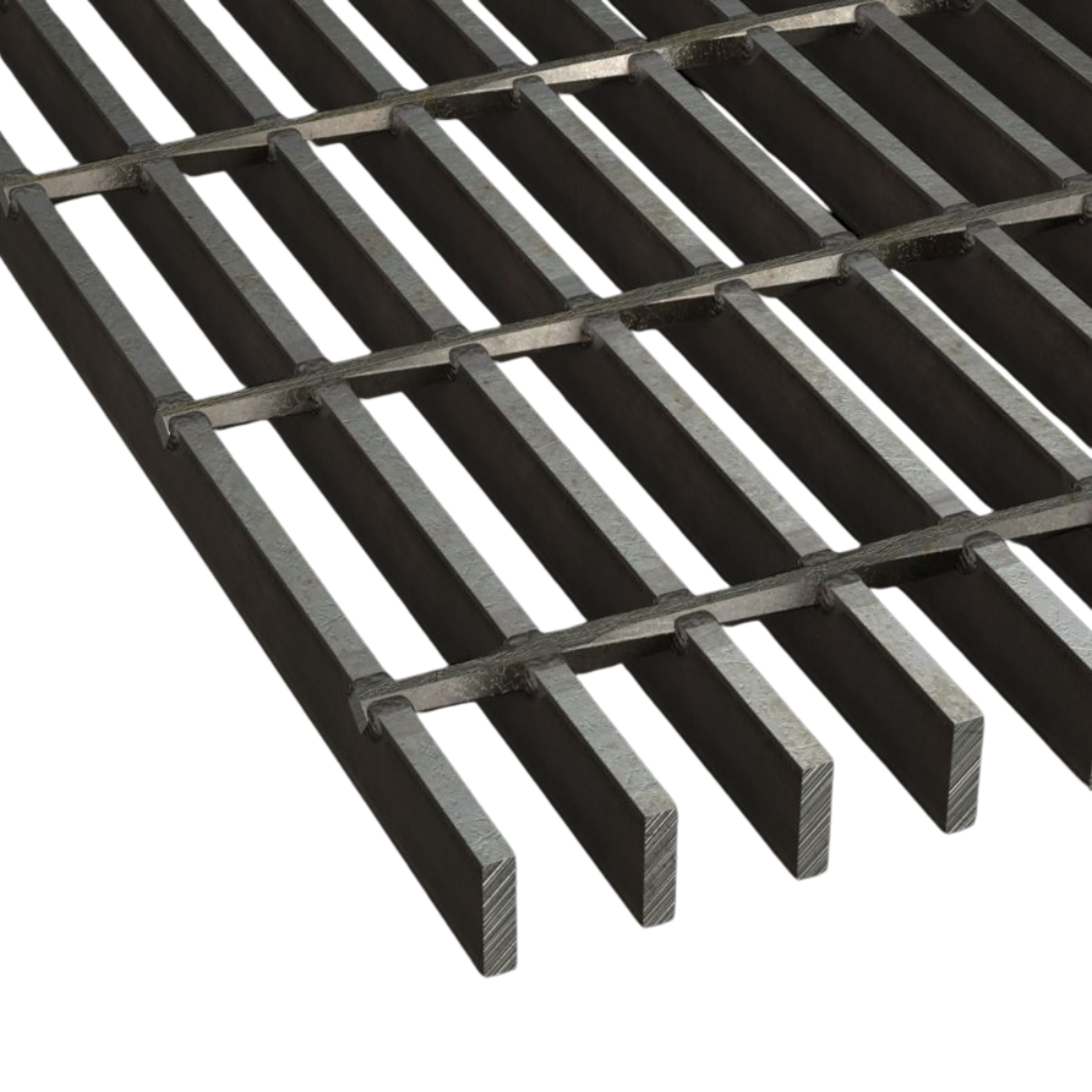

Our welded bar grating is fabricated by resistance-welding cross bars to bearing bars, creating a robust and rigid panel. This construction ensures high strength-to-weight ratio and a clean, uniform appearance. The plain surface offers a smooth finish, while the serrated option provides enhanced slip resistance, making it ideal for environments where safety is paramount. Each panel comes in a standard size of 1000mm x 6000mm, ensuring efficient coverage for large projects.

Key Features

• High Strength & Durability: Constructed from robust steel, ensuring longevity and resistance to heavy loads.
• Material Options: Available in standard steel for general applications and galvanized steel for superior corrosion resistance, ideal for outdoor or harsh environments.
• Surface Types:
  • Plain: Smooth surface for general purpose applications where a flat walking surface is preferred.
  • Serrated: Features notched bearing bars for enhanced slip resistance, crucial for wet, oily, or icy conditions.
• Efficient Design: Welded construction provides excellent strength-to-weight ratio and open area for light, air, and liquid passage.
• Standard Panel Size: Supplied in large panels of 1000mm x 6000mm for economical and efficient installation.

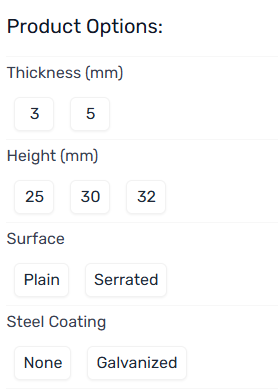

• Variety of Bar Dimensions: Offered with various bearing bar thicknesses and depths (e.g., 3x30mm, 5x25mm, 5x30mm, 5x32mm) to meet diverse load requirements.

Applications

• Industrial flooring and platforms.
• Walkways and mezzanines.
• Stair treads and landings.
• Trench covers and drainage grates.
• Security screens and infill panels.
• Bridge decking.
• Ventilation grilles.
• Architectural screens and facades.

Our Steel Welded Bar Grating is a reliable choice for projects requiring robust, long-lasting, and adaptable grating solutions. Contact us to find the perfect specification for your needs.
